LAUNCH TLT632AF
LAUNCH TLT632AF Scissor Lift Lift (LAUNCH) Supplier, Suppliers, Supply, Supplies ~ Beta Equipments Trading Sdn Bhd

LAUNCH TLT632AF
ULTRA-THIN SCISSOR LIFT

Features

  • The platform is extendable.
  • Ultra-thin structure design is applicable for on-ground arrangement, technical cooperation with. Italy, four hydraulic cylinders design, convenient for demounting tyres and repairing chassis.
  • Hydraulic interlocking and anti-explosion safety device makes it stable and reliable operation.
  • Bilateral hydraulic synchronizing system ensures high synchronization performance.
  • Travel limit safety device, protects machine from being damaged.
  • All moving points adopt automatic lubricating oil-free bearing for ensuring long lifespan.
  • Oil hose anti-explosion device.
  • CE-STOP function with safety alarm beep would automatically warn operators to keep safe distance from lift when it lowers to 400mm high from ground.
  • CE certificated.
  • One-key leveling, easy and simple (for upgraded version)

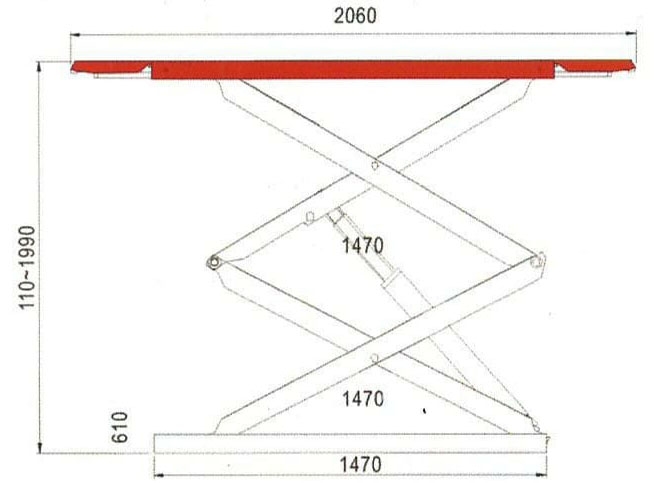

Technical Parameters

Rated load : 3200kg
Lifting height : 2000mm
Initial height : 110mm
Lifting time : ≤60s
Lowering time : ≥20s
Runway width : 620mm

Runway length : 1460~2060mm
Adviced distance between two runways : 800mm
Overall width : 2040mm
Safety method : Mechanical safety lock + pneumatic release
Motor power : 2.2 Kw
Motor voltage : 3 phrase/380v or Single phase/220V
Weight : 820kg
